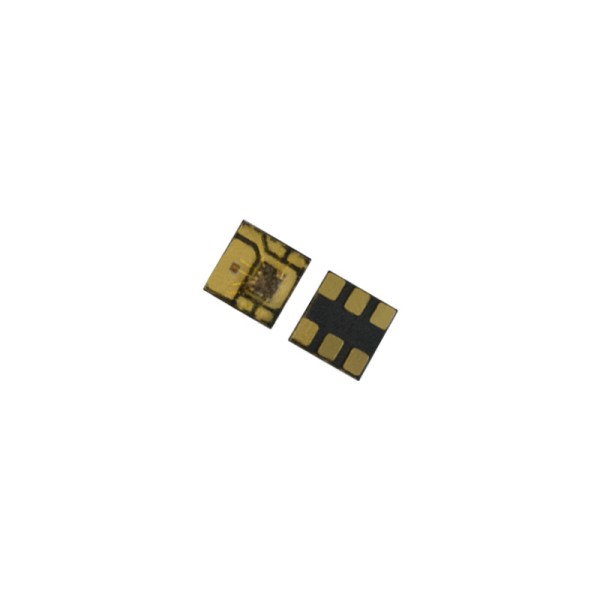

HD107S SMD2020 RGB 8 Bit Pixel светодиодный ic Driver IC

1. Описание продукта
HD107S 2020 RGB LED used intergrated IC to make, it is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 регулировка яркости, HD107S 2020 Pixel diodes with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated, so that the crystal cascade piece of output movement is sychronizated.

2. Особенность

• PWM refresh rate: 27kHz, (apa102C with PWM frequency 2KHZ,apa107 with 9kHZ. and sk9822 with PWM 4kHZ )
• HD107S LED strip, 30leds 5m without voltage drop, 5meters strip with one power input without color difference in the whole strip.
• The HD107s LED is same protocol with APA102, same PCB, same controller
• The HD107s led with higher brightness than apa102
• КМОП-процесс,низкое напряжение ,low consumption
• Synchronization of two-lane
• Choose positive output or negative RGB three-color LED output 8 bit(256 уровень) color set ,5bit(32 уровень) brightness adjustment Build-18ma constant current output
• With self-detection signal build in support for continuous oscillation PWMoutput ,can be maintained static screen

3. Приложение

• светодиодная лампа
• Светодиодная лента ,светодиодный пиксельный модуль
• Светодиодный рекламный щит Светодиодный экран

4.Технические параметры
Пункт №.: HD107S 2020 RGB
Тип светодиода: 2020 СМД
Напряжение: DC5V
Цвет: RGB
Описание: 256 шкала серого,(8биты) один кабель часов, один кабель для передачи данных

HD107s VS apa017Vs apa102 VSsk9822 .and other LED.ect
