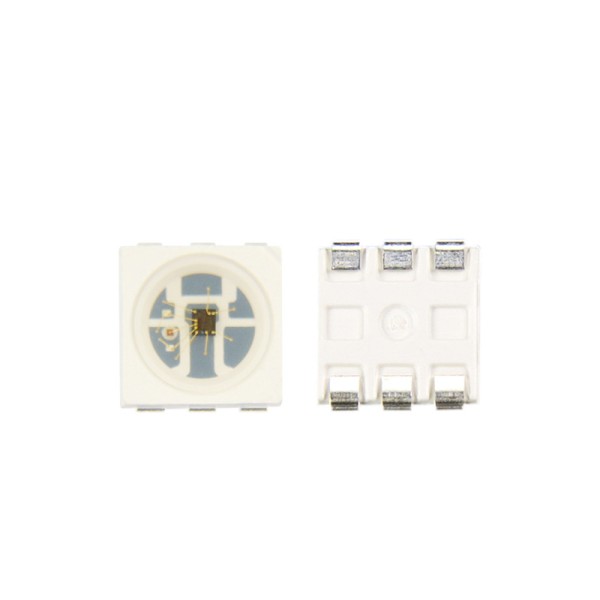

HD108 SMD5050 RGB Pixel LED Chip IC Driver

1. Product Description
HD108 is a two-wire transmission three-channel (RGB) drive control circuit and light-emitting circuit in one of the intelligent external control LED light source. Built-in constant current circuit and RC oscillator; internal integrated current gain control module, CMOS process, low voltage, low power consumption; when REXT is floating, the three-channel constant current driver default output of 18mA, the product is equipped with signal decoding module, Can also be REXT external resistor to adjust the required current, each output channel can output 16 (65536 level) gray adjustable linear current; using two-wire output, DATA data and synchronous CLK signal, so that the series chip The output action synchronization; refresh rate up to 27KHz, showing more delicate and smooth, the default power does not light.

2. Feature

● Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights;
● Control circuit and the RGB chip in 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
● The Two-wire synchronous control, built-in bi-directional transmission function.
●RGB three-color output control, 64Bit (65536 level) color settings; each set of data are 1bit start code +15 Bit (32) brightness adjustment (red, green, blue three ports each 5bits, corresponding to S4 ~ S0) ; 48bits gray data (red, green, blue 16bits) composition.
● Three-way constant current drive, built-in high-precision and high stability of the oscillator, current error <± 5%.
● The maximum serial data input frequency 40MHZ, refresh rate of up to 27KHz, cascade up to 1024 points.
● REXT external resistance adjusting current (REXT floating, OUTR / G / B to about 18mA; REXT external resistor to adjust the maximum current of 60mA).

3. Aplicativo

• LED lamp
• LED Strip ,led pixel module
• LED billboard LED screen

4.Technical Parameters
Item No.: HD108 5050 RGB
LED Type: 5050 SMD
Tensão: DC5V
Cor: RGB
Descrição: 65536 high gray-scale

HD108/HD107s VS apa017 Vs apa102 VS sk9822 .and other LED.ect
