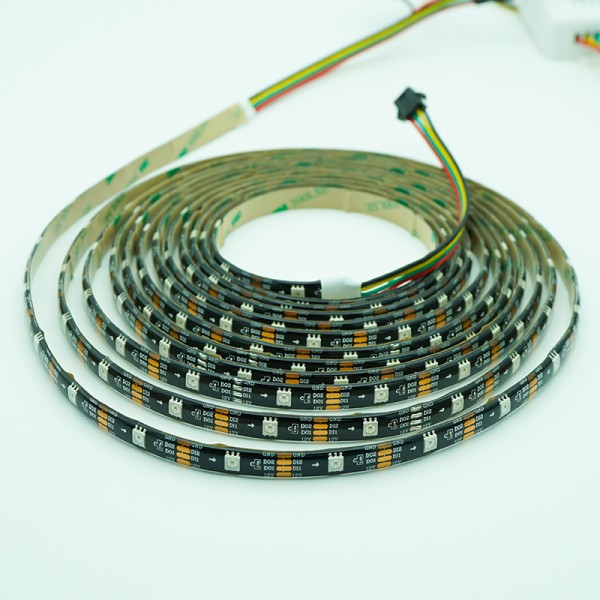

WS2815 5050RGB 30LEDs/m Pixel RGB LED Strip DC12V
WS2815
5050 SMD
DC12V
RGB
30leds/M
7.2W/M
White/Black PCB
IP Rate: IP20 IP65 IP67 IP68
- Description
- Inquiry
Description:
The upgrade item of WS2813, also two data cable, but DC12V, WS2813 is 5V.
1pcs LED burn, the other LED will keep working.
LED Chip has black and white surface.
White & black both color available PCB.
DC12V input, suggest inject Power from start and end of the reel.
3M adhesive attached on strip.

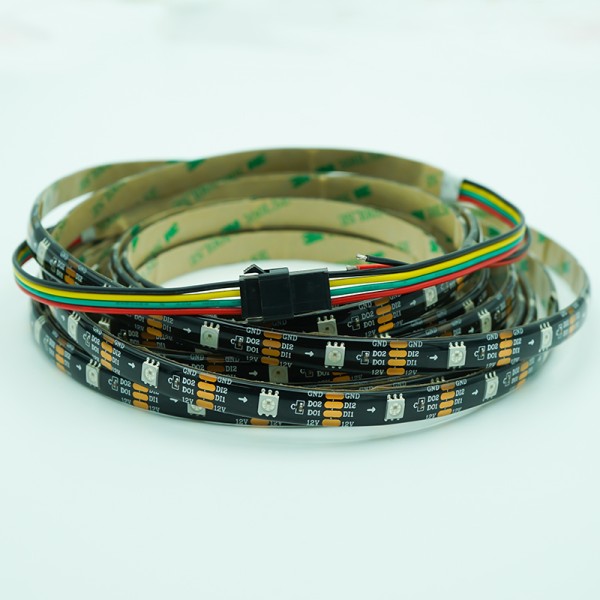

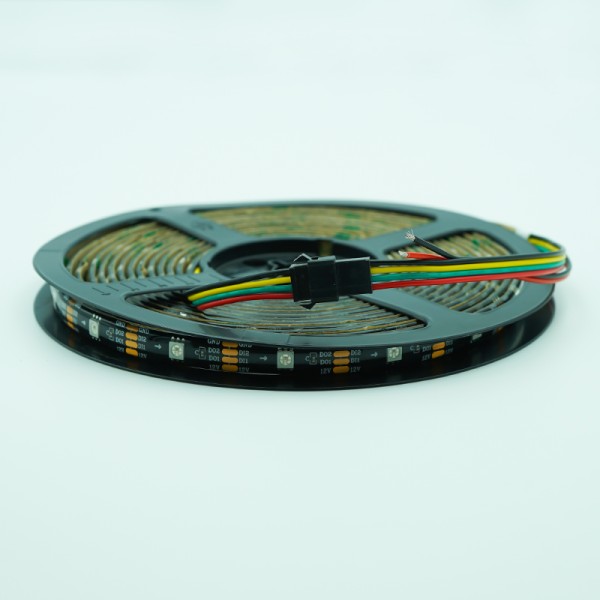

5m/roll with a pair of JST SM connector.
Product Specifications:
| Product Name | WS2815 RGB LED Tapes |
| LED type | 5050 SMD LED |
| IC type | WS2815 |
| Emitting color | Digital RGB |
| LED Q’ty | 30leds/m |
| Pixel Q’ty | 30pixels/m |
| Power | 7.2w/m |
| PCB Color | White/Black |
| IP Rating | IP20, IP65, IP67, IP68. |
| Length/Roll | 5M/Roll, strip length can be customized |
| Working Voltage | DC5V |
| Certification: | CE, EMC, FCC, LVD, RoHS |
| CRI (Ra>): | 80 |
| Warranty(Year) | 3Years |
| Model | LED Qty | IC Qty | Voltage | Max Power | Gray Scale | Color | Width |
| RDFS-2815P30-5V | 30 | 30 | 5V | 7.2W/M | 256 | Digital RGB | 10mm |
| RDFS-2815P60-5V | 60 | 60 | 14.4W/M | 256 | 10mm | ||
| RDFS-2815P72-5V | 72 | 72 | 17.28W/M | 256 | 12mm | ||
| RDFS-2815P96-5V | 96 | 96 | 23.04W/M | 256 | 12mm | ||
| RDFS-2815P144-5V | 144 | 144 | 34.56W/M | 256 | 12mm |
Application:
(1) Applicable for automobile and bicycle decoration, border or contour lighting
(2) Widely used for home decoration use, hotels, clubs, shopping malls
(3) Architectural decorative lighting, boutique atmosphere lighting
LED Strip Connection Diagram:
NOTE
1. The AC wiring must be connected to the ground wire to prevent electric shock.
2. The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.
The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.
