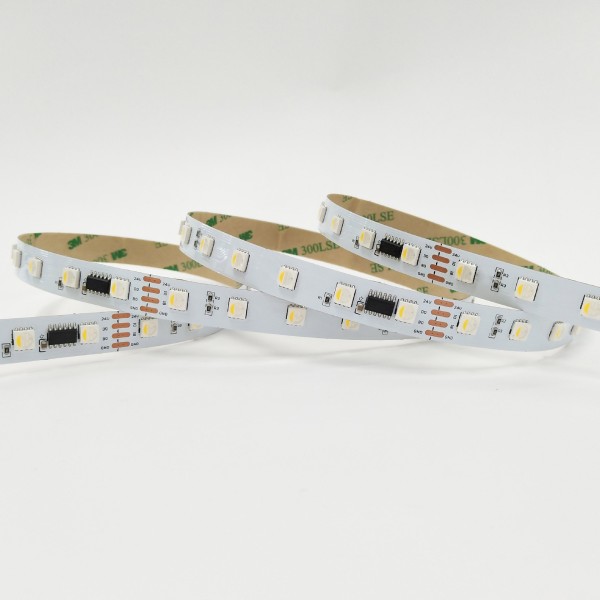

WS2814 60Leds RGBW DC24V Pixel LED Strips two data cable

WS2814 RGBW DC24V 120Leds Pixel LED Strips data back up
WS2813 RGBW 60leds Pixel LED Tapes DC5V two data cable

1. SPI WS2814 RGBW
2, Two data cable
3. DC24V, 19.2W/M
4. 60leds/m 10pixels/m
5. RGB + 3000K/4500K/6500K
6. 10mm width White / Black PCB

Description:

1, Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 12V power supply.
2, 256 Gray-scale adjustable and scan frequency is more than 2KHz.
3, Built in signal reshaping circuit, to ensure waveform distortion do not accumulate after wave reshaping to the next driver.
4, Built-in electrify reset circuit and power-down reset circuit.
5, Cascading port transmission signal by single line.
6, Any two point the distance less than 5 Meters’ transmission signal without any increase circuit.
7, When the refresh rate is 30fps, the cascade number is at least 1024 pixels.
8, Send data at speed of 800Kbps.

Product Specifications:

Product Name 24V WS2814 RGBW LED Strips
LED type 5050 SMD LED
IC type WS2814 SPI
Emitting color Digital RGBW
LED Q’ty 60leds/m
Pixel Q’ty 10pixels/m
Power 19.2w/m
PCB Color White/Black
IP Rating IP20, IP65, IP67, IP68.
Length/Roll 5M/Roll, strip length can be customized
Working Voltage DC24V
Certification: CE, EMC, FCC, LVD, RoHS
CRI (Ra>): 80
Warranty(Year) 3Years



Model

LED Qty

IC Qty

Voltage

Max Power

Gray Scale

Color

Width

RDFS-2814RGBWP30-24V

30

5

24V

9.6W/M

256

Addressable RGBW

10mm

RDFS-2814RGWP60-24V

60

10

19.2W/M

256

10mm

RDFS-2814RGBWP72-24V

72

12

23.04W/M

256

10mm

RDFS-2814RGBWP120-24V

120

20

38.4W/M

256

15mm

RDFS-2814RGBWP144-24V

144

24

46.08W/M

256

15mm

Application:

(1) Applicable for automobile and bicycle decoration, border or contour lighting

(2) Widely used for home decoration use, hotels, clubs, shopping malls

(3) Architectural decorative lighting, boutique atmosphere lighting

768

LED Strip Connection Diagram:

NOTE

1. The AC wiring must be connected to the ground wire to prevent electric shock.

2. The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.

The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.
