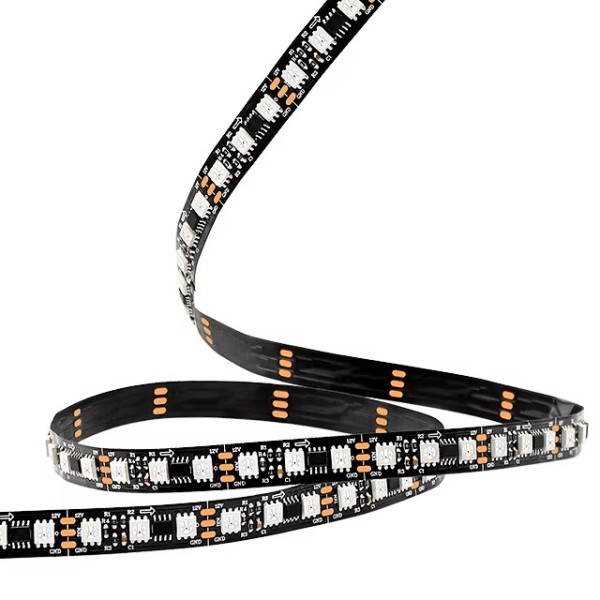

UCS8903 16bits DC24V RGB 60Leds Pixel LED Strip

HD105 5050RGBW 30LEDs/m 60LEDs/m 72LEDs/m 96LEDs/m 144LEDs/m Pixel RGBW LED Strip DC12V (Upgrade on WS2815)

1.High Quality products with full range of colors from 2300K-6500K;

2.Provide 1 BIN ,SDCM<3/SDCM<5
3.CRI 80, CRI 90, CRI95+ are available
4. Can meet the requirements of group leds run color changing.
5.16bit IC UCS8903B,65536 Gary Scale,PWM rate 4.0kHz
6.3 in 1 integrated package solution could achieve more uniform and consistent mixing light
7.External IC solution could achieve more stable quality and higher brightness.
8. 3/5 years warranty

Description:

1, 24V UCS8903 4-channel RGB
2, UCS8903 is 16 bits dimming, Gamma correction 2.0 curve
3, 16 bits dimming curve much better than the 8 bits UCS2903 IC.
4, Power on – Self inspection – blue led light on function
5, 18mA channale Constant current, Output port withstand voltage DC28V
5, If the 24V UCS8903 RGB pixel led strip does get damaged, it is often one pixel copper unit broken, in such case, just cutting of this segment and resolderring the rest copper units together to resume work.

Product Specifications

Product Name 24V UCS8903 RGB LED Strip
LED type 5050 SMD LED
IC type UCS8903 SPI
Emitting color Digital RGB
LED Q’ty 60leds/m
Pixel Q’ty 10pixels/m
Power 19.2w/m
PCB Color White/Black

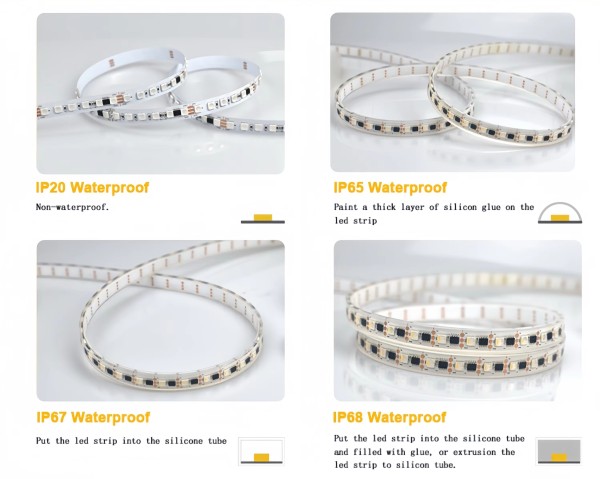

IP Rating IP20, IP65, IP67, IP68.
Length/Roll 5M/Roll, strip length can be customized
Working Voltage DC24V
Certification: CE, EMC, FCC, LVD, RoHS
CRI (Ra>): 80
Warranty(Year) 3Years

Model

LED Qty

IC Qty

Voltage

Max Power

Gray Scale

Color

Width

RDFS-8903RGB-30-24V

30

5

24V

9.6W/M

65536

Addressable RGB

10mm

RDFS-8903RGB-60-24V

60

10

19.2W/M

65536

10mm

RDFS-8903RGB-72-24V

72

12

23.04W/M

65536

12mm

RDFS-8903RGB-96-24V

96

16

30.72W/M

65536

12mm

RDFS-8903RGB-144-24V

144

24

46.08W/M

65536

15mm

Application:

(1) Applicable for automobile and bicycle decoration, border or contour lighting

(2) Widely used for home decoration use, hotels, clubs, shopping malls

(3) Architectural decorative lighting, boutique atmosphere lighting

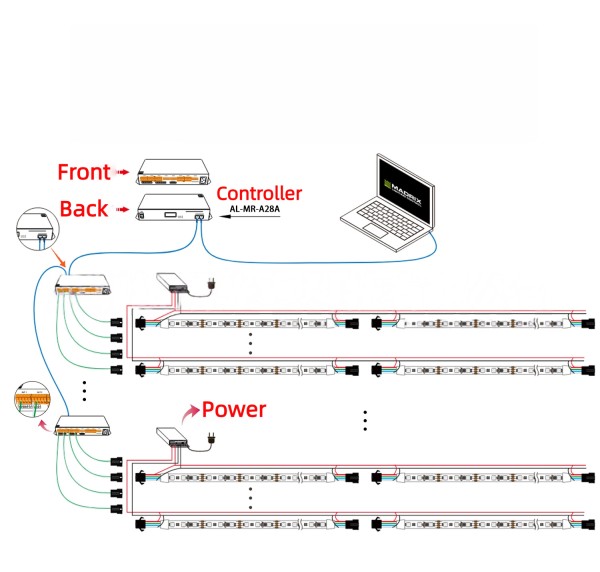

LED Strip Connection Diagram:

NOTE

1. The AC wiring must be connected to the ground wire to prevent electric shock.

2. The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.

The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.
